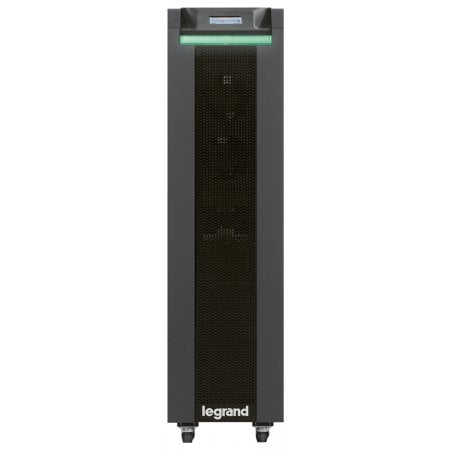

UPS 20 KVA/20KW with 60 baterai external include instalation (legrand keor t evo (20kva)) Daya Keluar : 20000VA/20000W Form Factor : Tower Voltase Masuk : • Nominal Voltage : 400V 3ph+N+PE • Voltage Range : 312 – 467 Ph-Ph full load | 208 – 467 Ph-Ph half load • Frequency : 45 65Hz • THDin : < 5% at full load • Power Factor : > 0.99 Voltase Keluar : • Nominal Voltage : 380/400/415V 3ph+N+PE • Voltage variation (static) : ± 1% • THDv on nominal power (linear load) : < 2% • THDv on nominal power (nonlinear load) : < 4% • Frequency : 50 Hz or 60 Hz (selectable) • Current Crest Factor : up to 3:1 • Overload capability: 125% load with no Bypass (10 min) | 150% load with no Bypass (60 sec) Lain-lain : • UPS Topology : On line double conversion • In/Out phase Configuration : Three phase • Switching Technology : 3Level IGBT • Neutral : Neutral Passing through • Noise level @ 1m (50% load) : < 58dBA • Operating temperature range : from 0°C to +40°C • Stock temperature range : from 20°C to +50°C • Humidity range : 20-95% not condensing • Protection degree : IP20 Spesifikasi Tambahan : • 60 Baterai eksternal minimal 25 AH • Garansi Minimal 1 tahun
